ET-2SC Brushless Sloar pump with plastic impeller

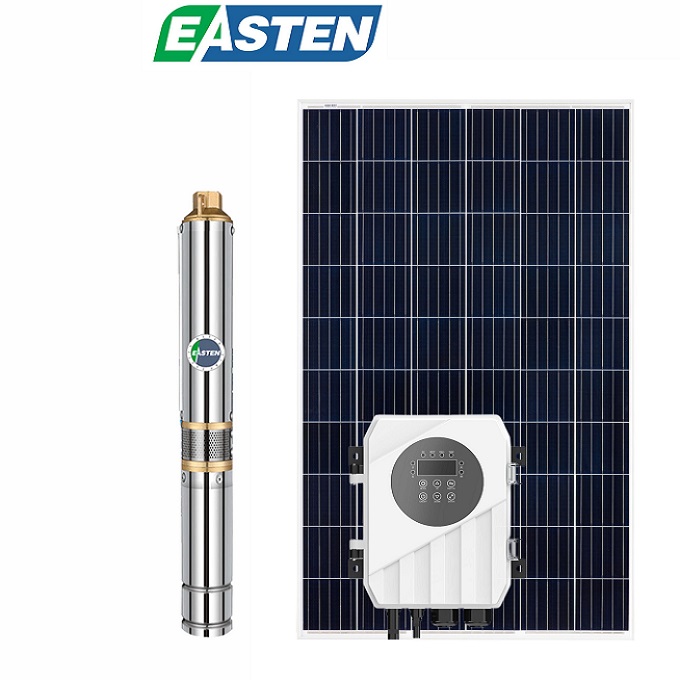

ET-2SC Submersible Solar Pump, Solar deep well pump, Brushless Solar Pump use solar energy to pump and transport water.
Application : domestic water supply, agricultural irrigation, garden use and so on.
Model : ET-2SC series
Brand : EASTEN
Technical Data
| NAME | Model | Voltage | Best imput Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar Panel | ||
| open volatage | Power | ||||||||||
| ET-2SC Brushless Sloar pump with plstic impeller | 5 | ET-2SC1.0-25-12-80 | 12V | 20V-36V | 80W | 1.0m³/h | 25m | 0.75″ | 2m | ＜50V | ≥150W |
| 6 | ET-2SC2.0-25-24-200 | 24V | 30V-48V | 200W | 2.0m³/h | 25m | 0.75″ | 2m | ＜50V | ≥300W | |
| 7 | ET-2SC2.5-36-24-300 | 24V | 30V-48V | 300W | 2.5m³/h | 36m | 0.75″ | 2m | ＜50V | ≥500W | |
| 8 | ET-2SC2.5-55-48-400 | 48V | 60V-90V | 400W | 2.5m³/h | 55m | 0.75″ | 2m | ＜100V | ≥600W | |

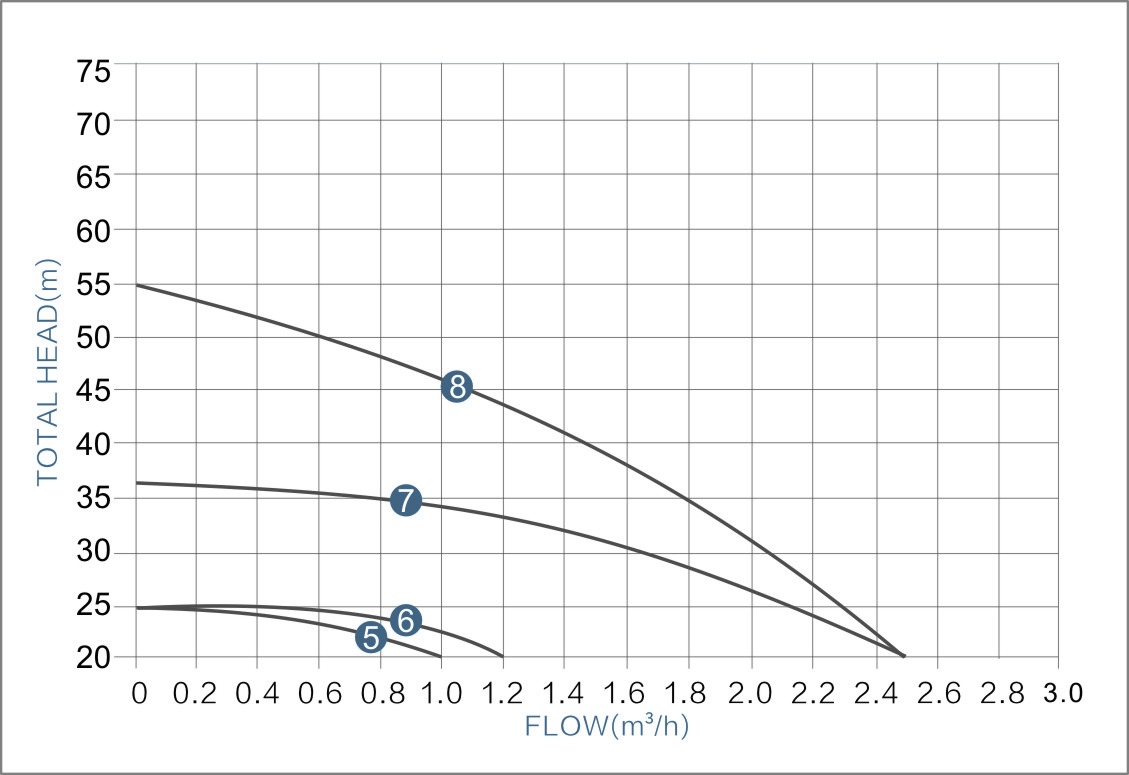

Performance Curves
