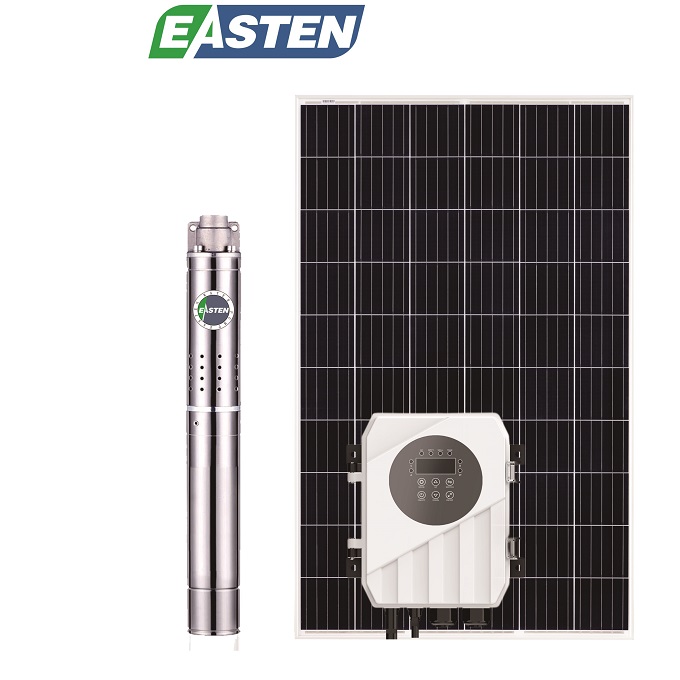

ET-2SS Brushless Screw Solar Pump
ET-2SS Submersible Solar Pump , Solar deep well pump use solar energy to pump and transport water ,It is immersed in water. It is the most attractive water supply method in the sun-rich regions of the world today, especially in remote areas where lack electricity .
Its mainly apply for domestic water supply, agricultural irrigation, garden use and so on.
Solar Pump Advantages
1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.
2.304 SS rotator shaft .
3.NSK bearing , the working life will be 3 to 5 times prolonged
4.Environmental protection, clean energy , can be powered by both solar panel and battery

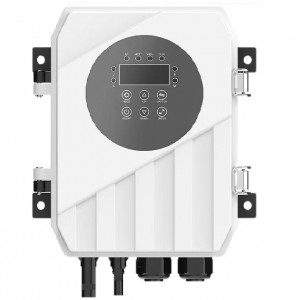

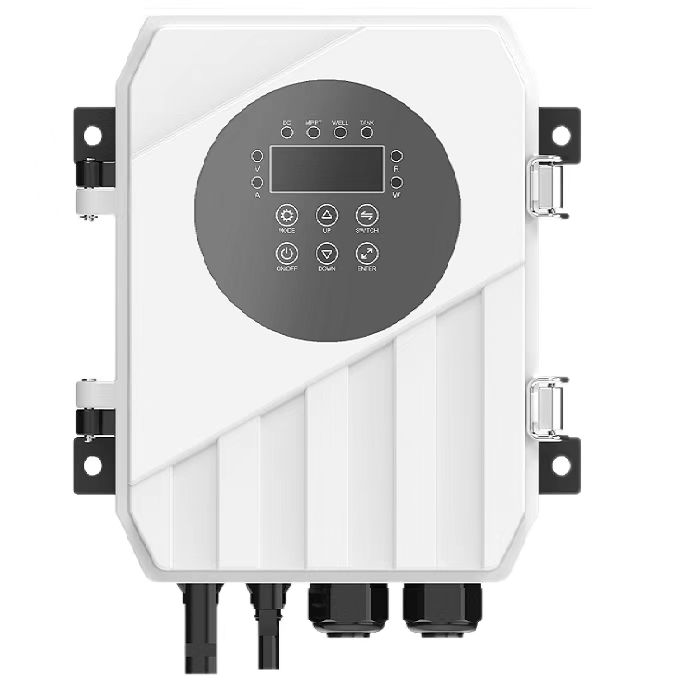

5.DC pump controller with MPPT function
Technical Data
NAME | Model | Voltage | Best imput Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar Panel | ||
open volatage | Power | ||||||||||
ET-2SS Brushless Screw Solar Pump | 1 | ET-2SS1.0-25-12-80 | 12V | 20V-36V | 80W | 1.0m³/h | 25m | 0.75″ | 2m | <50V | ≥150W |
2 | ET-2SS1.2-40-24-120 | 24V | 30V-48V | 120W | 1.2m³/h | 40m | 0.75″ | 2m | <50V | ≥250W | |
3 | ET-2SS1.5-75-36-210 | 36V | 30V-48V | 210W | 1.5m³/h | 75m | 0.75″ | 2m | <50V | ≥300W | |
4 | ET-2SS1.7-100-48-500 | 48V | 60V-90V | 500W | 1.7m³/h | 100m | 0.75″ | 2m | <100V | ≥600W |

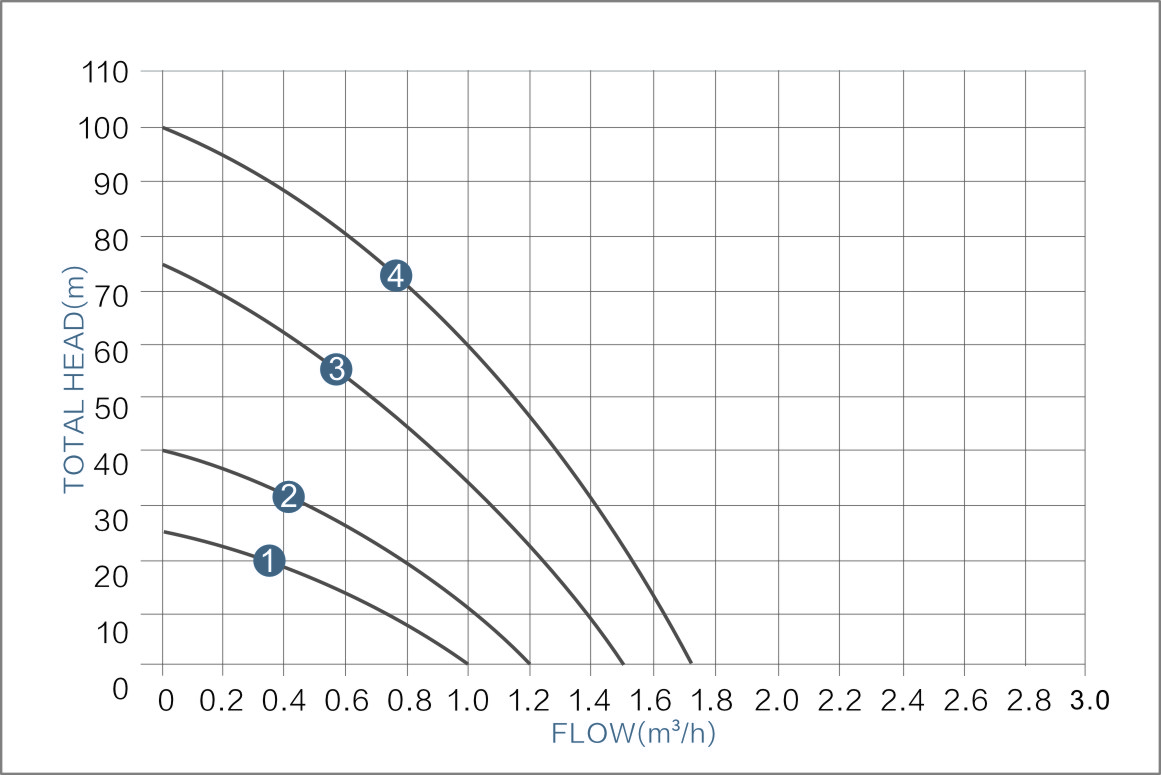

Performance Curves
