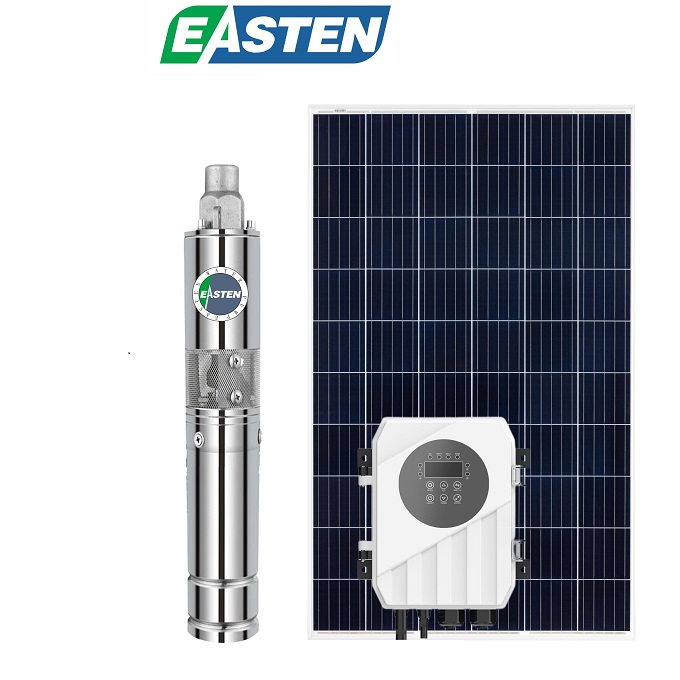

ET-3SS Brushless Screw Solar Pump

Short Description:

ET-3SS Brushless Screw Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden use. Model : ET-3SS series Brand : EASTEN

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ET-3SS Brushless Screw Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden use.

Model : ET-3SS series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.

2.304 SS rotator shaft .

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

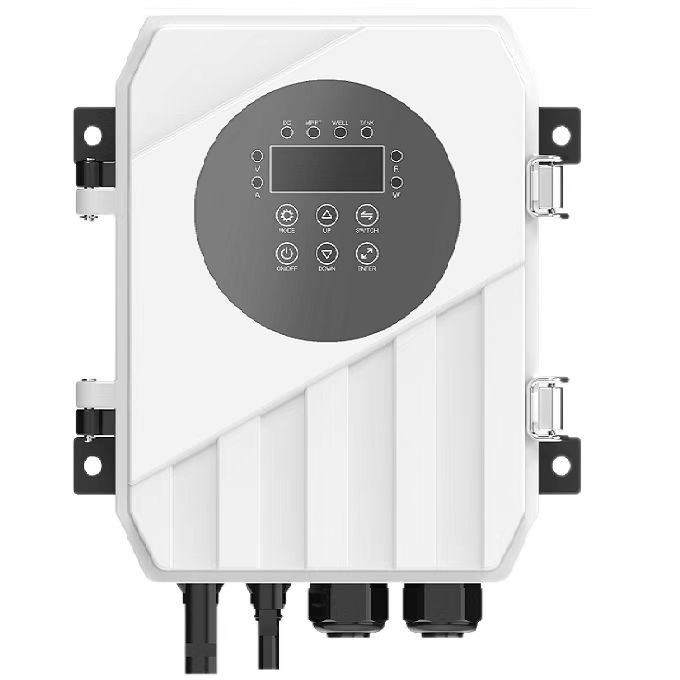

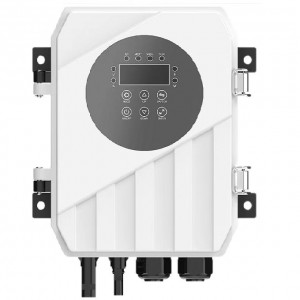

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

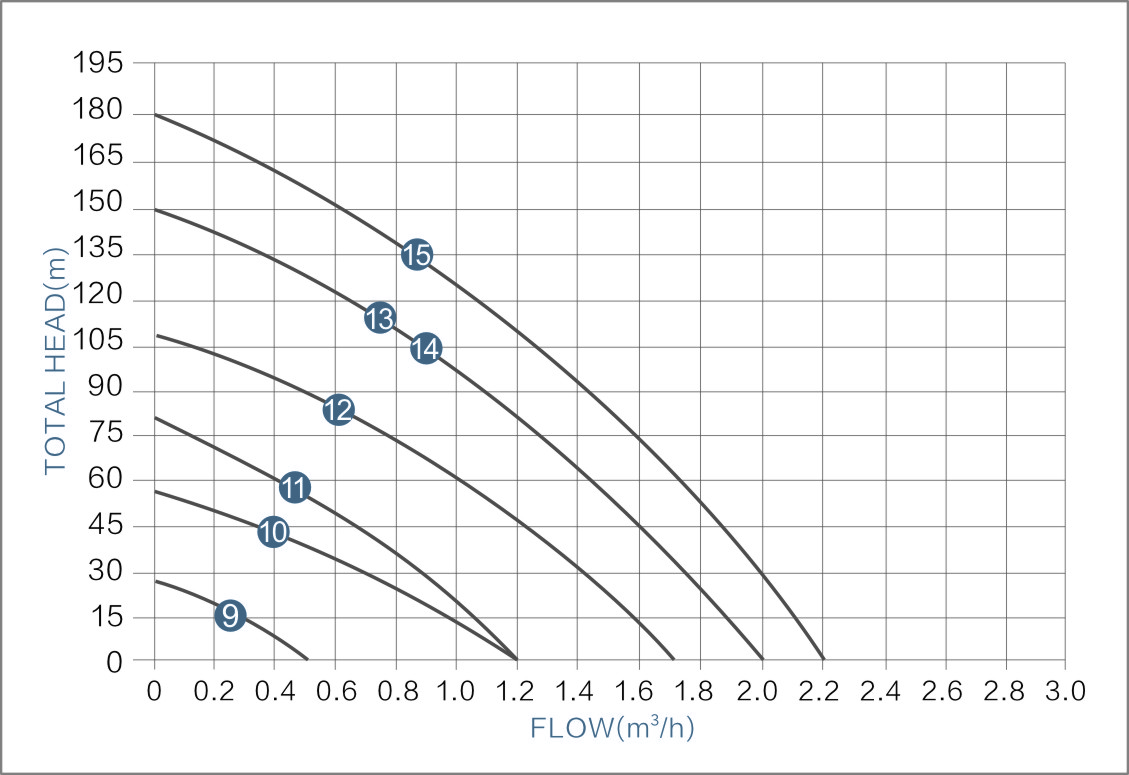

Technical Data

NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel
NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	open volatage	Power
ET-3SS Brushless Screw Solar Pump	9	ET-3SS0.5-28-12-80	12V	20V-36V	80W	0.5m³/h	28m	0.75″	2m	＜50V	≥150W
	10	ET-3SS1.2-56-24-120	24V	30V-48V	120W	1.2m³/h	56m	0.75″	2m	＜50V	≥250W
	11	ET-3SS1.2-80-36-210	36V	30V-48V	210W	1.2m³/h	80m	0.75″	2m	＜50V	≥300W
	12	ET-3SS1.7-109-48-500	48V	60V-90V	500W	1.7m³/h	109m	0.75″	2m	＜100V	≥600W
	13	ET-3SS2.0-150-48-750	48V	60V-90V	750W	2.0m³/h	150m	0.75″	2m	＜100V	≥1000W
	14	ET-3SS2.0-150-72-750	72V	90V-120V	750W	2.0m³/h	150m	0.75″	2m	＜150V	≥1000W
	15	ET-3SS2.2-180-72-1100	72V	90V-120V	1100W	2.2m³/h	180m	0.75″	2m	＜150V	≥1500W
