ET-3SSC Brushless Solar Pump with SS Impeller

Short Description:

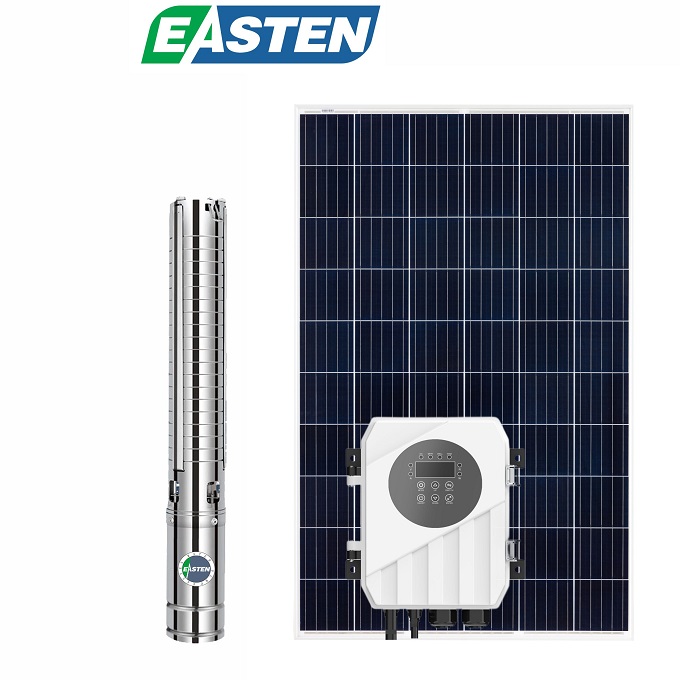

ET-3SSC Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden use. Model : ET-3SSC series Brand : EASTEN

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ET-3SSC Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden use.

Model : ET-3SSC series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.

2.304 SS rotator shaft .

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

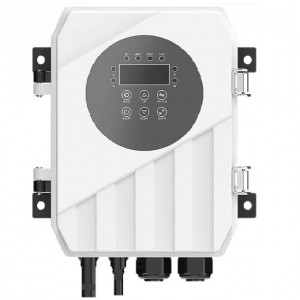

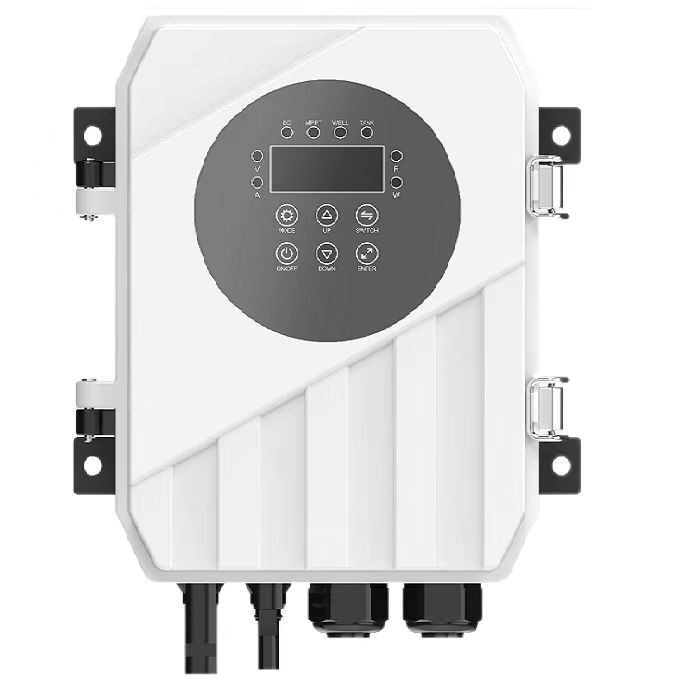

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .

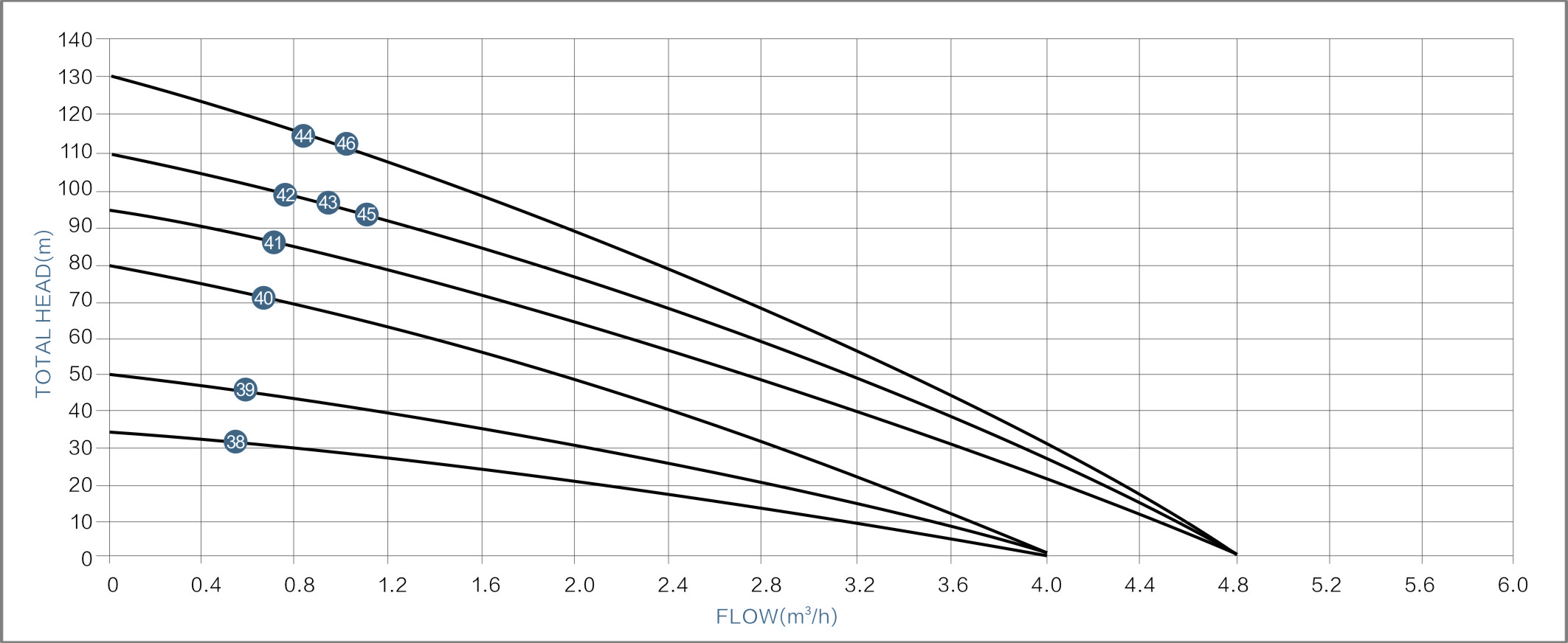

Technical Data

NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel
NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	open volatage	Power
ET-3SSC Brushless Solar Pump with SS Impeller	38	ET-3SSC4-35-24-200	24V	30V-48V	200W	4m³/h	35m	1.25″	2m	＜50V	≥300W
	39	ET-3SSC5-50-48-400	48V	60V-90V	400W	4m³/h	50m	1.25″	2m	＜100V	≥600W
	40	ET-3SSC4-80-48-600	48V	60V-90V	600W	4m³/h	80m	1.25″	2m	＜100V	≥750W
	41	ET-3SSC4.8-95-72-750	72V	90V-120V	750W	4.8m³/h	95m	1.25″	2m	＜150V	≥1000W
	42	ET-3SSC4.8-110-72-1100	72V	90V-120V	1100W	4.8m³/h	110m	1.25″	2m	＜150V	≥1500W
	43	ET-3SSC4.8-110-110-1100	110V	110V-150V	1100W	4.8m³/h	110m	1.25″	2m	＜200V	≥1500W
	44	ET-3SSC4.8-130-110-1500	110V	110V-150V	1500W	4.8m³/h	130m	1.25″	2m	＜200V	≥2000W
	45	ET-3SSC4.8-110-220/300-1100A/D	AC220/DC300V	300V/400V	1100W	4.8m³/h	110m	1.25″	2m	＜450V	≥1800W
	46	ET-3SSC4.8-130-220/300-1500A/D	AC220/DC300V	300V/400V	1500W	4.8m³/h	130m	1.25″	2m	＜450V	≥2000W
