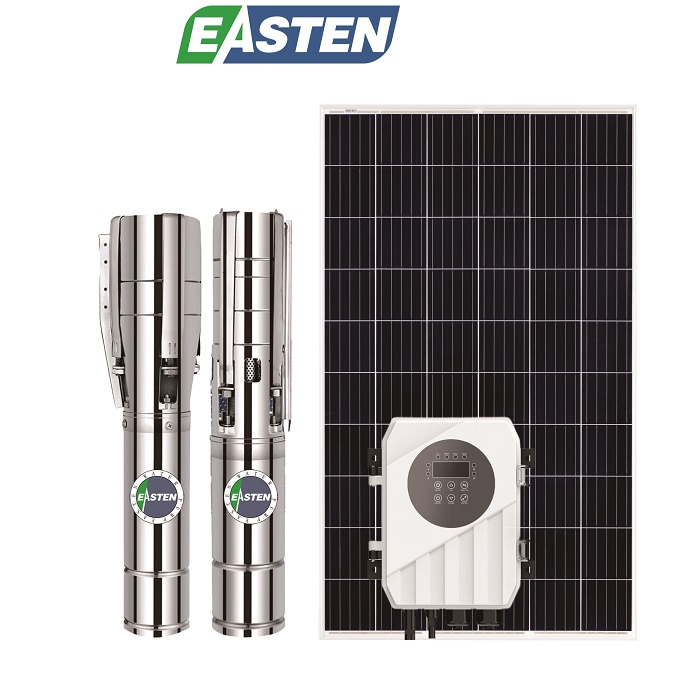

ET-4/6SSC Brushless Solar Pump
ET-4/6SSC Brushless Solar Pump use solar energy to pump and transport water ,
Application: for domestic water supply, agricultural irrigation, garden, outdoor use.
Model : ET-4/6SSC series
Brand : EASTEN
Solar Pump Advantages
1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.
2.304 SS rotator shaft
3.NSK bearing , the working life will be 3 to 5 times prolonged
4.Environmental protection, clean energy , can be powered by both solar panel and battery

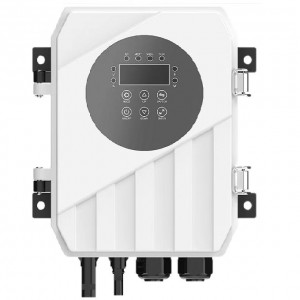

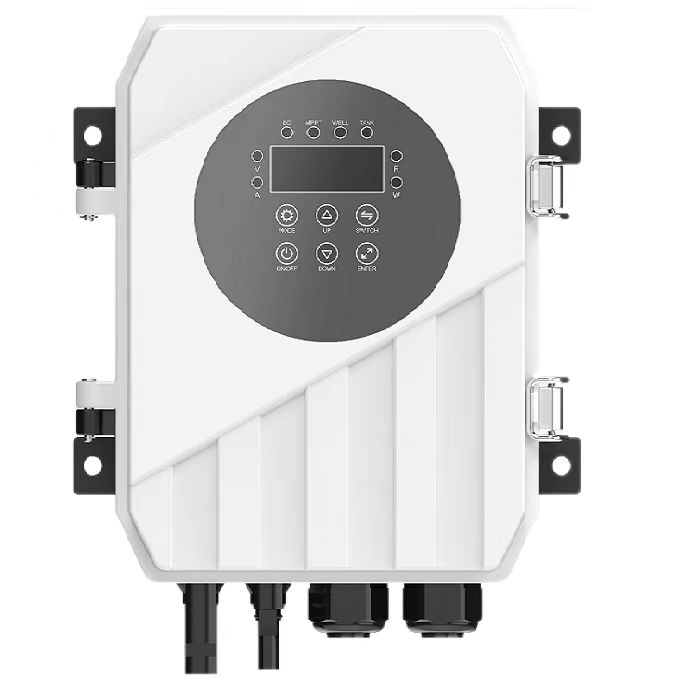

5.DC pump controller with MPPT function
6.Much longer life than the normal AC water pump
7.Over-load protection , Under- load protection
8.4 inch motor connect to 6 inch pump body with high flow
Technical Data
NAME | Model | Voltage | Best imput Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar Panel | ||
open volatage | Power | ||||||||||
ET-4/6SSC-A/D Brushless Solar pump with SS impeller | 121 | ET-4/6SSC36-19-220/300-1500-A/D | AC220/DC300V | 300V-400V | 1500W | 36m³/h | 19m | 3″ | 2m | <450V | ≥2000W |
122 | ET-4/6SSC36-38-220/300-2200-A/D | AC220/DC300V | 300V-400V | 2200W | 36m³/h | 38m | 3″ | 2m | <450V | ≥3000W | |
123 | ET-4/6SSC36-38-380/550-2200-A/D | AC380/DC550V | 480V-750V | 2200W | 36m³/h | 38m | 3″ | 2m | <800V | ≥3000W | |
124 | ET-4/6SSC36-56-380/550-3000-A/D | AC380/DC550V | 480V-750V | 3000W | 36m³/h | 56m | 3″ | 2m | <800V | ≥4000W | |
125 | ET-4/6SSC36-75-380/550-4000-A/D | AC380/DC550V | 480V-750V | 4000W | 36m³/h | 75m | 3″ | 2m | <800V | ≥5000W |

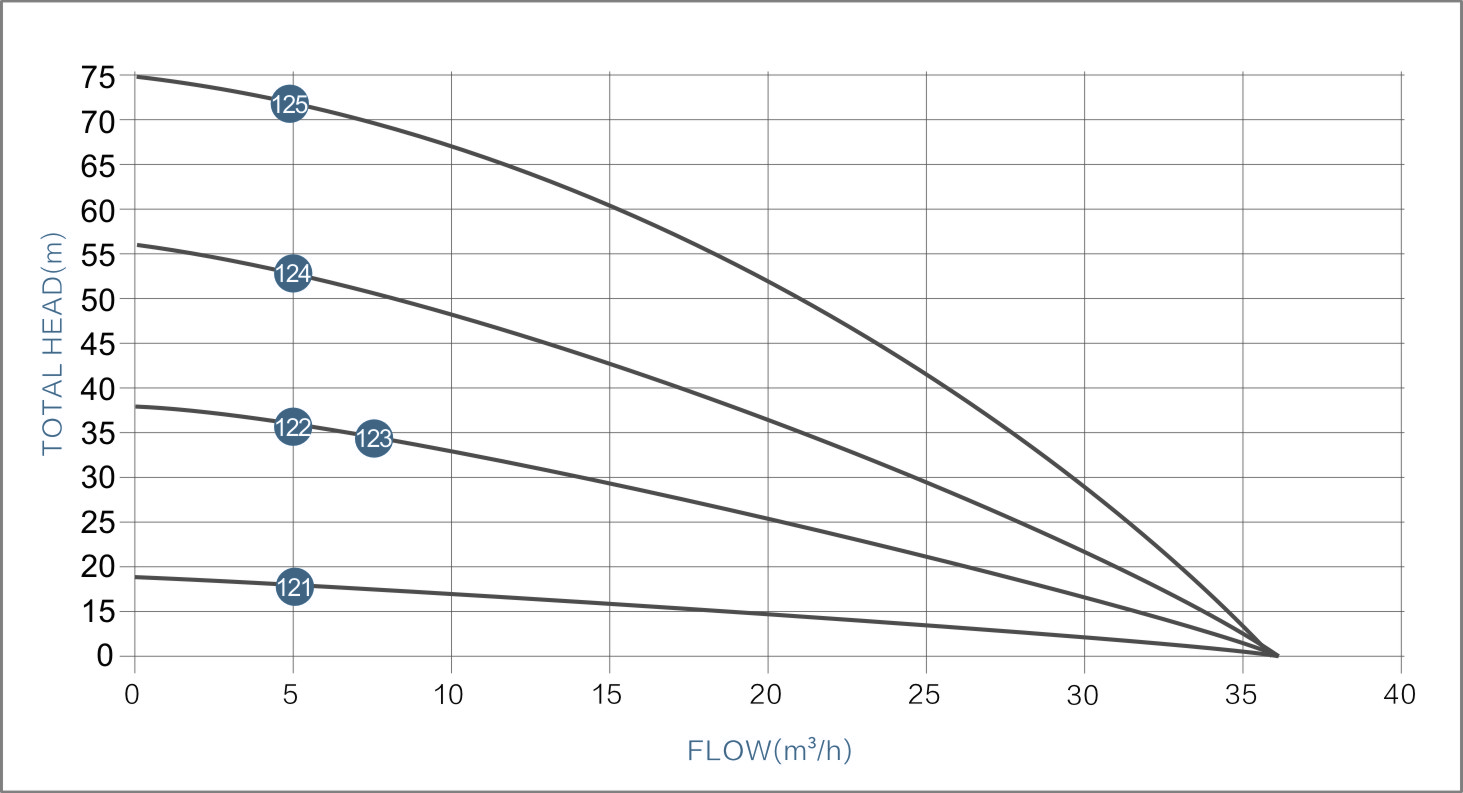

Performance Curves
