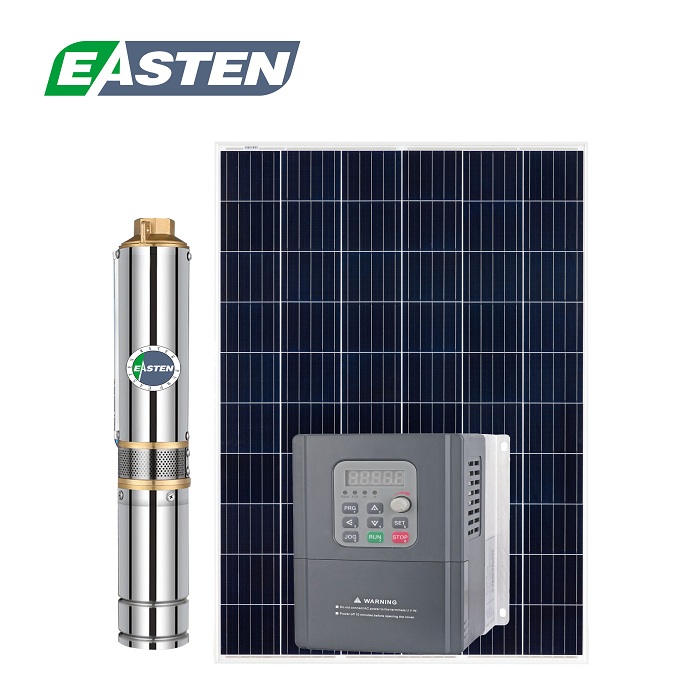

ET-4SC-6 Brushless Solar Pump with pastic impeller
ET-4SC-6 Brushless Solar Pump use solar energy to pump and transport water ,
Application: for domestic water supply, agricultural irrigation, garden use.
Model : ET-4SC-6 series
Brand : EASTEN
Solar Pump Advantages
1.Permanent magnet DC brushless synchronous motor , efficiency improved 20%.
2.304 SS rotator shaft . Oil Chamber use brass or iron for option.
3.NSK bearing , the working life will be 3 to 5 times prolonged
4.Environmental protection, clean energy , can be powered by both solar panel and battery

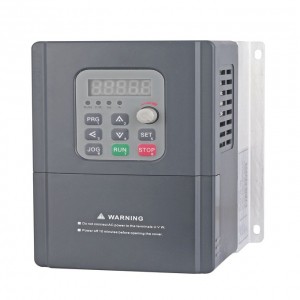

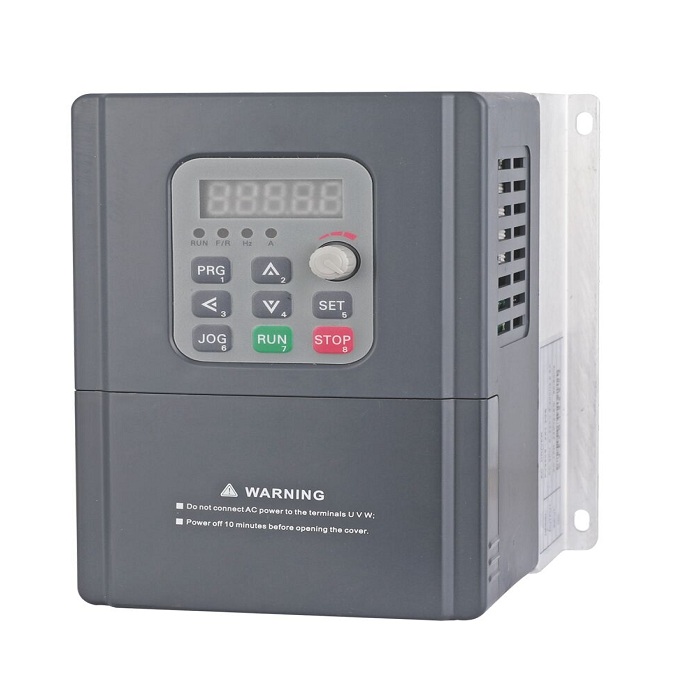

5.DC pump controller with MPPT function
6.Much longer life than the normal AC water pump
7.Over-load protection , Under- load protection .
Technical Data
NAME | Model | Voltage | Best imput Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar Panel | ||
open volatage | Power | ||||||||||
ET-4SC Brushless Solar Pump with pastic impeller | 74 | ET-4SC6.0-56-220/300-750-A/D | AC220/DC300V | 300V-400V | 750W | 6.0m³/h | 56m | 1.25″ | 2m | <450V | ≥1800W |
75 | ET-4SC6.0-84-220/300-1100-A/D | AC220/DC300V | 300V-400V | 1100W | 6.0m³/h | 84m | 1.25″ | 2m | <450V | ≥1800W | |
76 | ET-4SC6.0-112-220/300-1300-A/D | AC220/DC300V | 300V-400V | 1300W | 6.0m³/h | 112m | 1.25″ | 2m | <450V | ≥1800W | |
77 | ET-4SC6.0-135-220/300-1500-A/D | AC220/DC300V | 300V-400V | 1500W | 6.0m³/h | 135m | 1.25″ | 2m | <450V | ≥2000W | |
78 | ET-4SC6.0-175-220/300-2200-A/D | AC220/DC300V | 300V-400V | 2200W | 6.0m³/h | 175m | 1.25″ | 2m | <450V | ≥3000W | |
79 | ET-4SC6.0-175-380/550-2200-A/D | AC380/DC550V | 480V-750V | 2200W | 6.0m³/h | 175m | 1.25″ | 2m | <800V | ≥3000W | |
80 | ET-4SC6.0-230-380/550-3000-A/D | AC380/DC550V | 480V-750V | 3000W | 6.0m³/h | 230m | 1.25″ | 2m | <800V | ≥4000W | |
81 | ET-4SC6.0-300-380/550-4000-A/D | AC380/DC550V | 480V-750V | 4000W | 6.0m³/h | 300m | 1.25″ | 2m | <800V | ≥5000W |

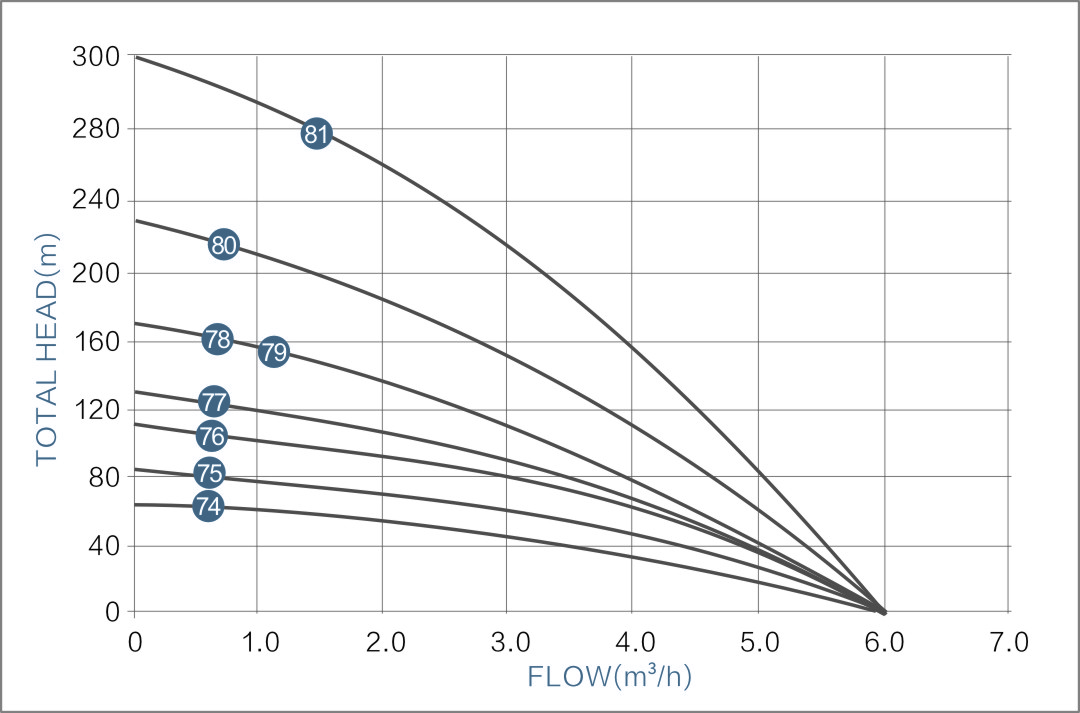

Performance Curves
