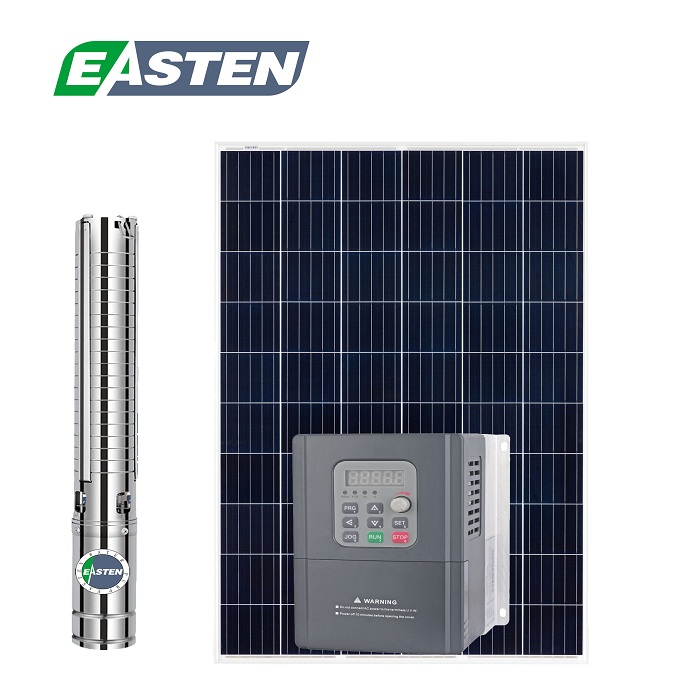

ET-4SSC-7 Brushless Solar Pump

Short Description:

ET-4SSC-7 Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden, outdoor use. Model : ET-4SSC-7 series Brand : EASTEN

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ET-4SSC-7 Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden, outdoor use.

Model : ET-4SSC-7 series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.

2.304 SS rotator shaft .

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

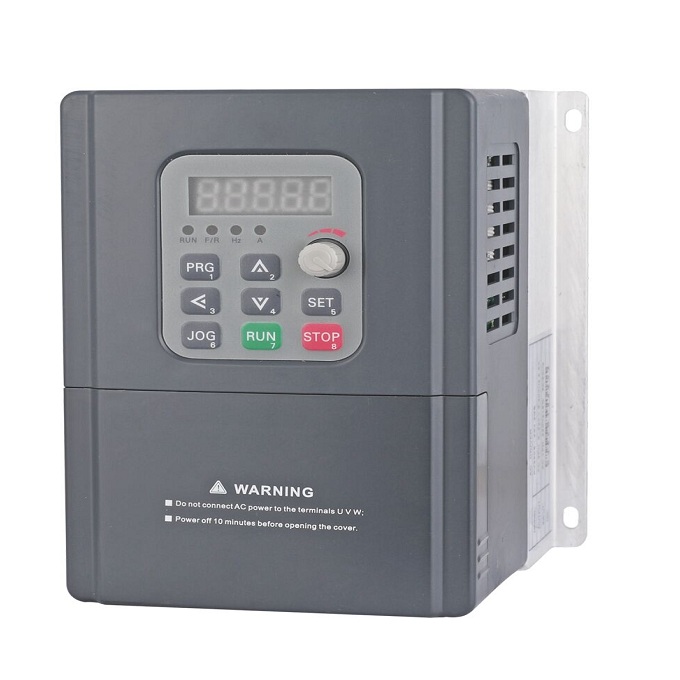

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .

8.4 inch motor connect to 6 inch pump body with high flow .

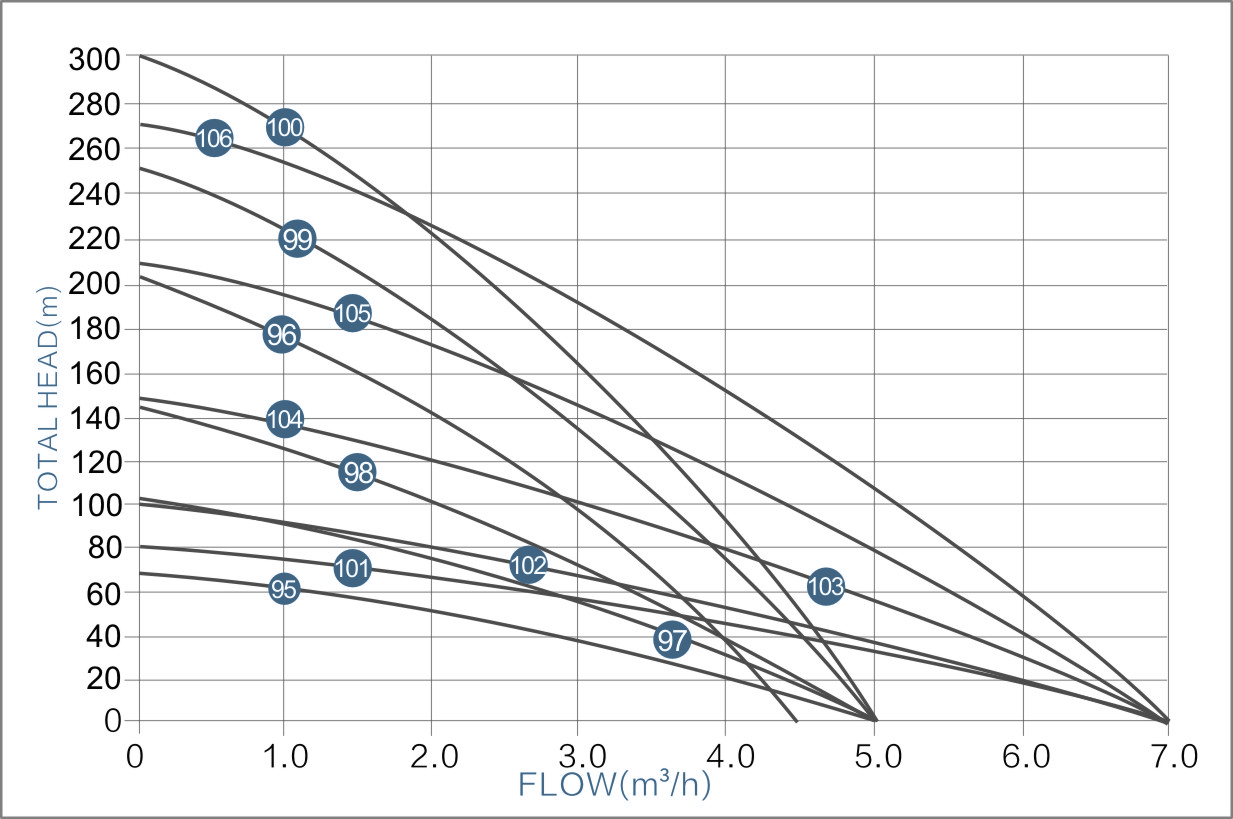

Technical Data

NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel
NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	open volatage	Power
ET-4SSC-A/D Brushless Solar Pump with SS impeller	95	ET-4SSC5.0-67-220/300-750-A/D	AC220/DC300V	300V-400V	750W	5.0m³/h	67m	1.25″	2m	＜450V	≥1800W
	96	ET-4SSC4.5-203-220/300-1500-A/D	AC220/DC300V	300V-400V	1500W	4.5m³/h	203m	1.25″	2m	＜450V	≥2000W
	97	ET-4SSC5.0-101-220/300-1100-A/D	AC220/DC300V	300V-400V	1100W	5.0m³/h	101m	1.25″	2m	＜450V	≥1800W
	98	ET-4SSC5.0-146-220/300-1500-A/D	AC220/DC300V	300V-400V	1500W	5.0m³/h	146m	1.25″	2m	＜450V	≥2000W
	99	ET-4SSC5.0-255-220/300-2200-A/D	AC220/DC300V	300V-400V	2200W	5.0m³/h	255m	1.25″	2m	＜450V	≥3000W
	100	ET-4SSC5.0-300-380/550-2200-A/D	AC380/DC550V	480V-750V	2200W	5.0m³/h	300m	1.25″	2m	＜800V	≥3000W
	101	ET-4SSC7.0-80-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	7.0m³/h	80m	1.25″	2m	＜800V	≥4000W
	102	ET-4SSC7.0-100-220/300-1300-A/D	AC220/DC300V	300V-400V	1300W	7.0m³/h	100m	1.25″	2m	＜450V	≥1800W
	103	ET-4SSC7.0-150-220/300-1500-A/D	AC220/DC300V	300V-400V	1500W	7.0m³/h	150m	1.25″	2m	＜450V	≥2000W
	104	ET-4SSC7.0-150-220/300-2200-A/D	AC220/DC300V	300V-400V	2200W	7.0m³/h	150m	1.25″	2m	＜800V	≥3000W
	105	ET-4SSC7.0-210-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	7.0m³/h	210m	1.25″	2m	＜800V	≥4000W
	106	ET-4SSC7.0-272-380/550-4000-A/D	AC380/DC550V	480V-750V	4000W	7.0m³/h	272m	1.25″	2m	＜800V	≥5000W
