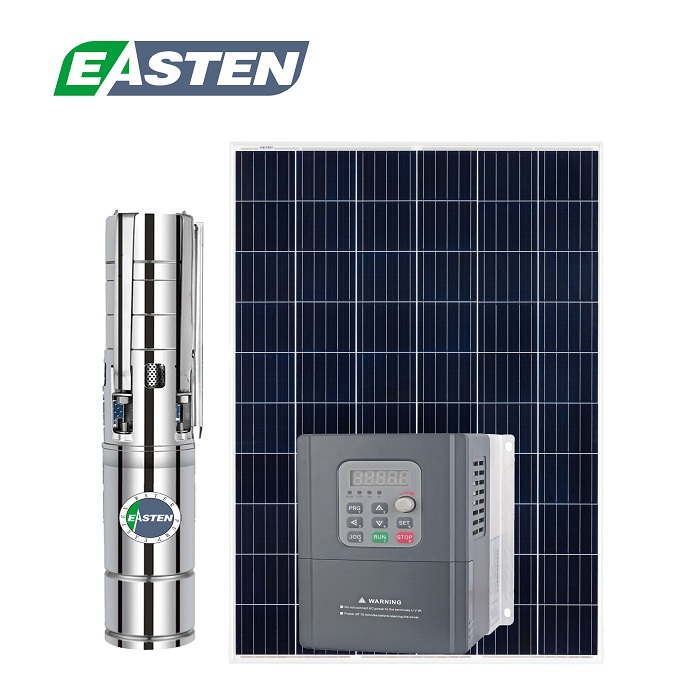

ET-4SSC-9 Brushless Solar Pump
ET-4SSC-9 Brushless Solar Pump use solar energy to pump and transport water ,
Application: for domestic water supply, agricultural irrigation, garden, outdoor use.
Model : ET-4SSC-9 series
Brand : EASTEN
Solar Pump Advantages
1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.
2.304 SS rotator shaft .
3.NSK bearing , the working life will be 3 to 5 times prolonged
4.Environmental protection, clean energy , can be powered by both solar panel and battery

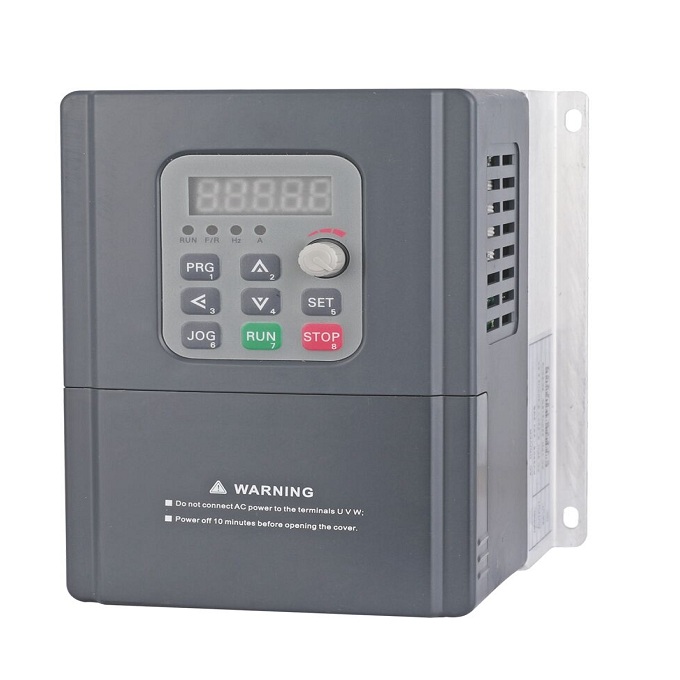

5.DC pump controller with MPPT function
6.Much longer life than the normal AC water pump
7.Over-load protection , Under- load protection .
8.4 inch motor connect to 6 inch pump body with high flow .
Technical Data
| NAME | Model | Voltage | Best imput Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar Panel | ||
| open volatage | Power | ||||||||||
| ET-4SSC-A/D Brushless Solar Pump with SS impeller | 107 | ET-4SSC9-59-220/300-1500-A/D | AC220/DC300V | 300V-400V | 1500W | 9.0m³/h | 59m | 2″ | 2m | ＜450V | ≥2000W |
| 108 | ET-4SSC9-120-220/300-2200-A/D | AC220/DC300V | 300V-400V | 2200W | 9.0m³/h | 120m | 2″ | 2m | ＜450V | ≥3000W | |
| 109 | ET-4SSC9-120-380/550-2200-A/D | AC380/DC550V | 480V-750V | 2200W | 9.0m³/h | 120m | 2″ | 2m | ＜800V | ≥3000W | |
| 110 | ET-4SSC9-155-380/550-3000-A/D | AC380/DC550V | 480V-750V | 3000W | 9.0m³/h | 155m | 2″ | 2m | ＜800V | ≥4000W | |
| 111 | ET-4SSC9-200-380/550-4000-A/D | AC380/DC550V | 480V-750V | 4000W | 9.0m³/h | 200m | 2″ | 2m | ＜800V | ≥5000W | |
| 112 | ET-4SSC19-34-220/300-1500-A/D | AC220/DC300V | 300V-400V | 1500W | 19m³/h | 34m | 2″ | 2m | ＜450V | ≥2000W | |
| 113 | ET-4SSC19-57-220/300-2200-A/D | AC220/DC300V | 300V-400V | 2200W | 19m³/h | 57m | 2″ | 2m | ＜450V | ≥3000W | |
| 114 | ET-4SSC19-57-380/550-2200-A/D | AC380/DC550V | 480V-750V | 2200W | 19m³/h | 57m | 2″ | 2m | ＜800V | ≥3000W | |
| 115 | ET-4SSC19-90-380/550-3000-A/D | AC380/DC550V | 480V-750V | 3000W | 19m³/h | 90m | 2″ | 2m | ＜800V | ≥4000W | |
| 116 | ET-4SSC19-135-380/550-4000-A/D | AC380/DC550V | 480V-750V | 4000W | 19m³/h | 135m | 2″ | 2m | ＜800V | ≥5000W | |
| 117 | ET-4SSC30-36-220/300-2200-A/D | AC220/DC300V | 300V-400V | 2200W | 30m³/h | 36m | 2″ | 2m | ＜450V | ≥3000W | |
| 118 | ET-4SSC30-36-380/550-2200-A/D | AC380/DC550V | 480V-750V | 2200W | 30m³/h | 36m | 2″ | 2m | ＜800V | ≥3000W | |
| 119 | ET-4SSC30-50-380/550-3000-A/D | AC380/DC550V | 480V-750V | 3000W | 30m³/h | 50m | 2″ | 2m | ＜800V | ≥4000W | |
| 120 | ET-4SSC30-72-380/550-4000-A/D | AC380/DC550V | 480V-750V | 4000W | 30m³/h | 72m | 2″ | 2m | ＜800V | ≥5000W | |

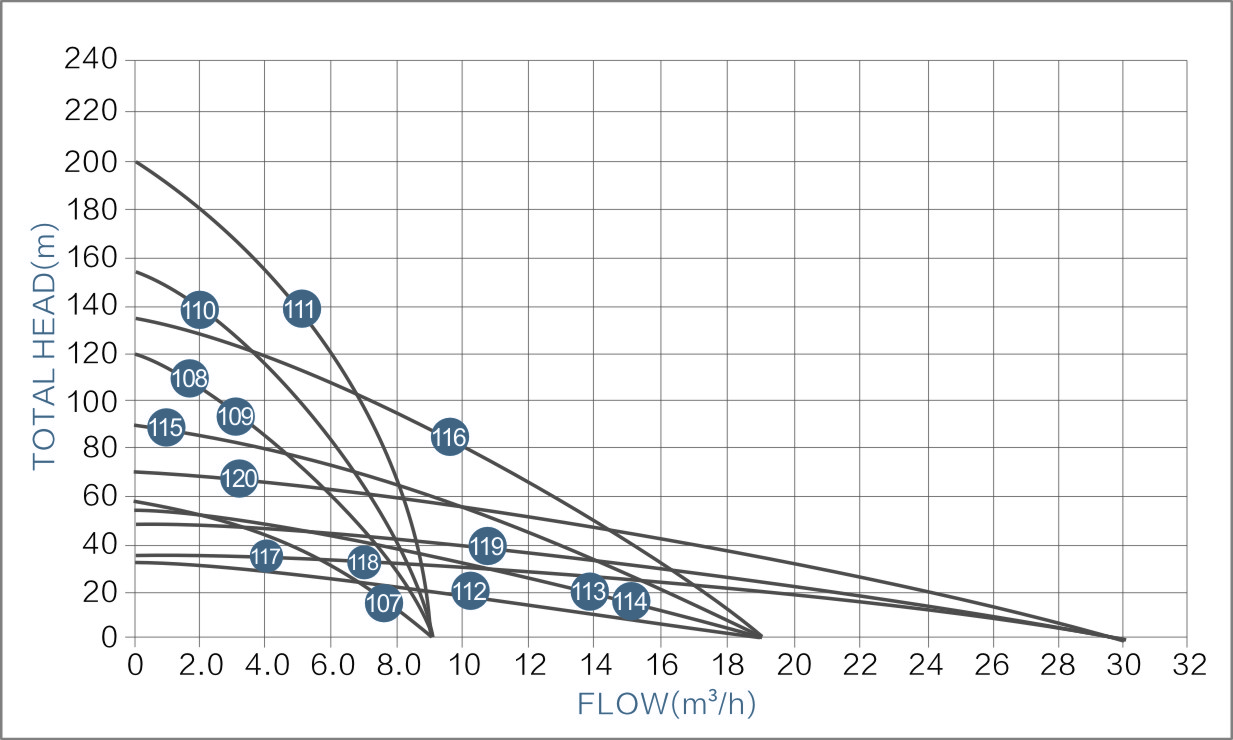

Performance Curves
