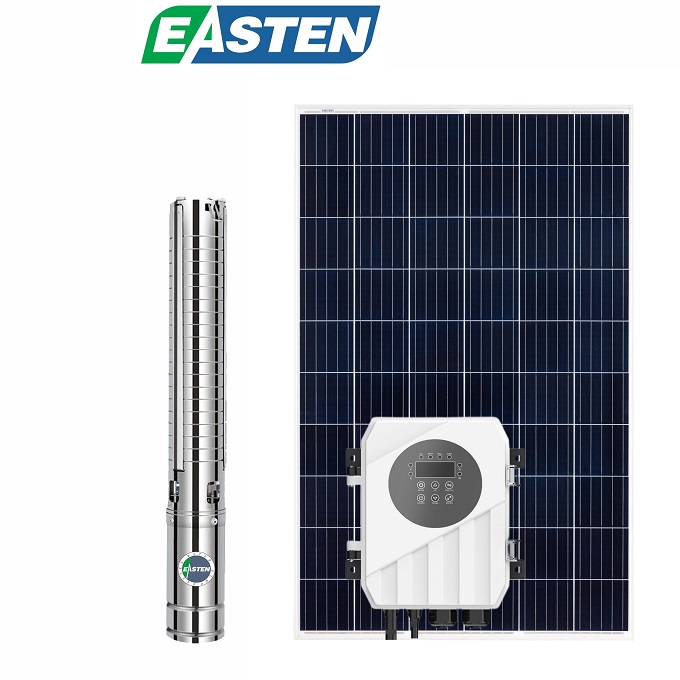

ET-4SSC Brushless Solar Pump with SS Impeller

Short Description:

ET-4SSC Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden use. Model : ET-4SSC series Brand : EASTEN


Product Detail

FAQ

Product Tags

ET-4SSC Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden use.

Model : ET-4SSC  series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 20%.

2.304 SS rotator shaft . Oil Chamber use brass or iron for option.

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

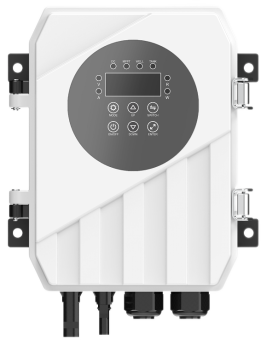

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .



Technical Data

NAME  Model  Voltage  Best imput Voltage (DC) Power  Max. Flow  Max. Head  Outlet  Cable  Solar Panel
open volatage  Power
ET-4SSC  Brushless Solar Pump with SS Impeller  60 ET-4SSC5.0-45-48-500 48V 60V-90V 500W 5.0m³/h 45m 1.25″ 2m <100V ≥750W
61 ET-4SSC5.0-67-48-750 48V 60V-90V 750W 5.0m³/h 67m 1.25″ 2m <100V ≥1000W
62 ET-4SSC5.0-67-72-750 72V 90V-120V 750W 5.0m³/h 67m 1.25″ 2m <150V ≥1000W
63 ET-4SSC5.0-101-72-1100 72V 90V-120V 1100W 5.0m³/h 101m 1.25″ 2m <150V ≥1500W
64 ET-4SSC5.0-101-110-1100 110V 110V-150V 1100W 5.0m³/h 101m 1.25″ 2m <200V ≥1500W
65 ET-4SSC5.0-146-110-1300 110V 110V-150V 1300W 5.0m³/h 146m  1.25″ 2m <200V ≥1800W
66 ET-4SSC4.5-203-110-1500 110V 110V-150V 1500W 4.5m³/h 203m 1.25″ 2m <200V ≥2000W
67 ET-4SSC7.0-80-110-1300 110V 110V-150V 1300W  7.0m³/h 80m 1.25″ 2m <200V ≥1800W
68 ET-4SSC7.0-100-110-1500 110V 110V-150V 1500W  7.0m³/h 100m 1.25″ 2m <200V ≥2000W

ET-4SSC  Brushless Solar Pump with SS Impeller  69 ET-4SSC9.0-60-110-1500 110V 110V-150V 1500W 9.0m³/h 60m 2″ 2m <200V ≥2000W
70 ET-4SSC19-35-110-1500 110V 110V-150V 1500W 19m³/h 35m 2″ 2m <200V ≥2000W
71 ET-4SSC25-25-110-1500 110V 110V-150V 1500W 25m³/h 25m 2″ 2m <200V ≥2000W
72 ET-4SSC30-18-72-1100 72V 90V-120V 1100W  30m³/h 18m 2″ 2m <150V ≥1500W
73 ET-4SSC34-20-110-1500 110V  110V-150V 1500W 34m³/h 20m 2″ 2m <200V ≥2000W

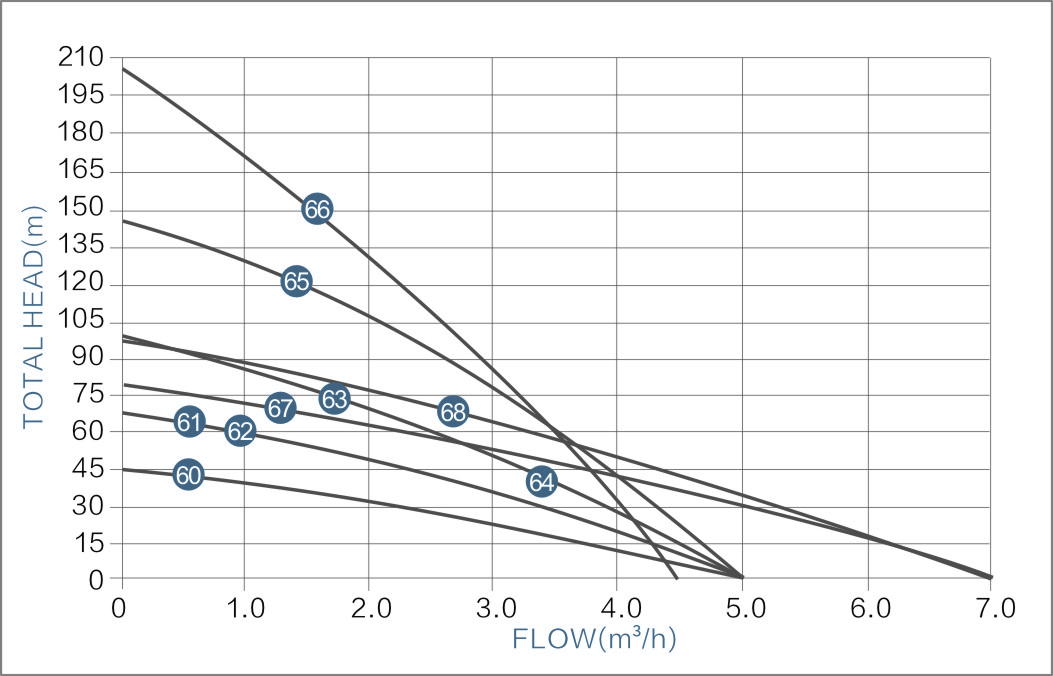

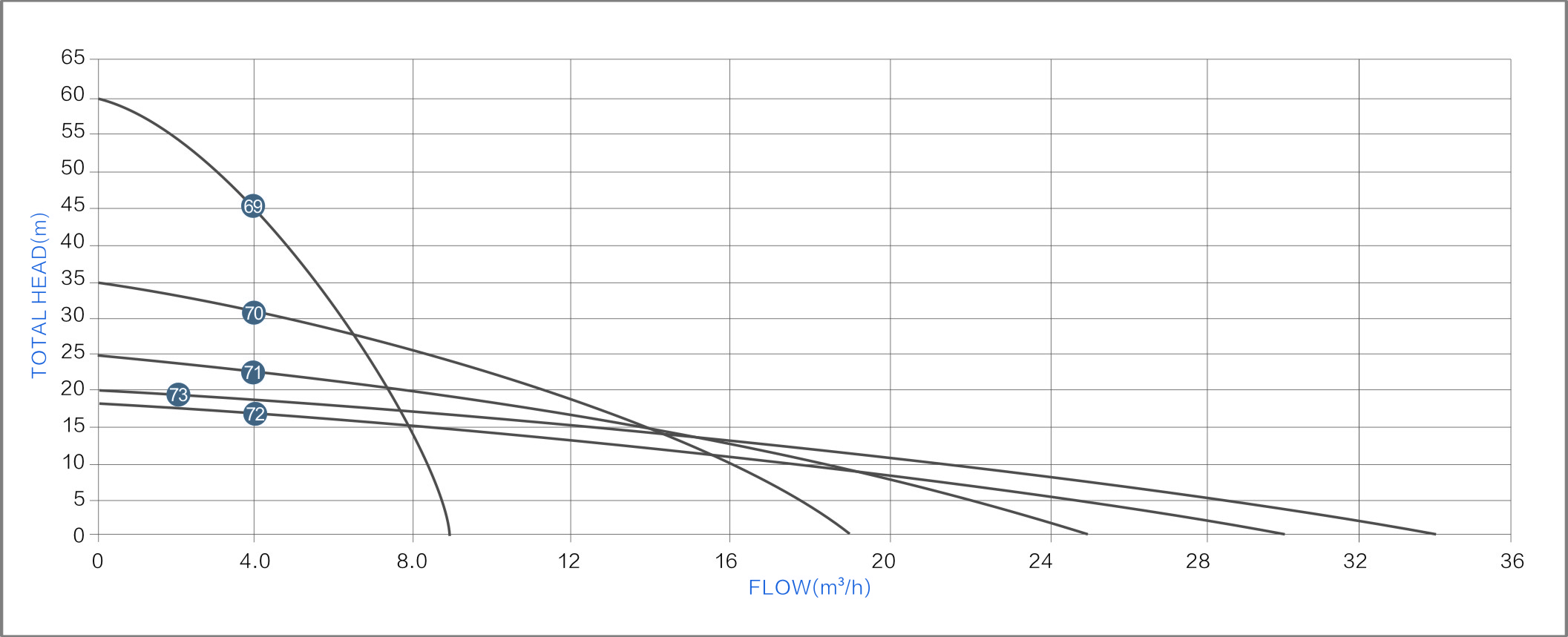

Performance Curves

60-68 69-73
