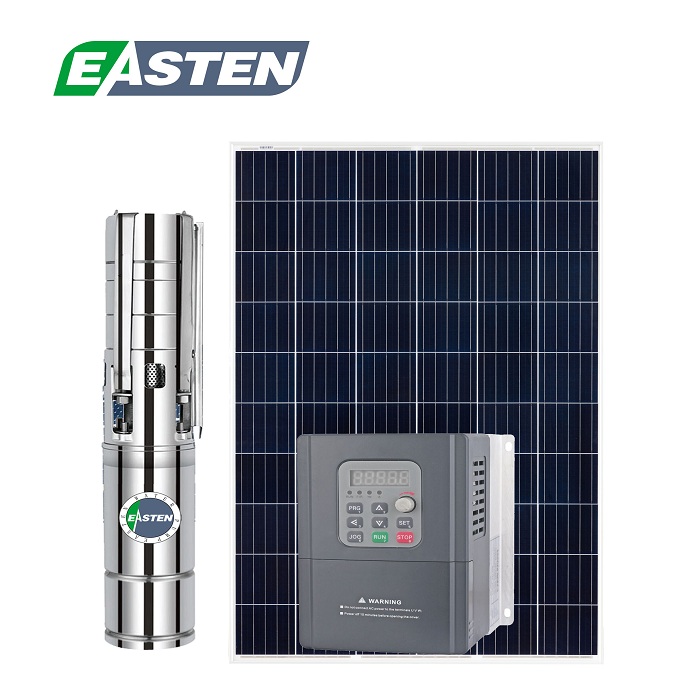

ET-6SSC-36-A/D Brushless Solar Pump

Short Description:

ET-6SSC-36-A/D Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden, outdoor use. Model : ET-4SSC-7 series Brand : EASTEN

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ET-6SSC-36-A/D Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden, outdoor use.

Model : ET-4SSC-7 series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.

2.304 SS rotator shaft .

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .

Technical Data

NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel
NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	open volatage	Power
ET-6SSC-A/D Brushless Solar pump with SS impeller	126	ET-6SSC36-60-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	36m³/h	60m	3″	2m	＜800V	≥4000W
	127	ET-6SSC36-77-380/550-4000-A/D	AC380/DC550V	480V-750V	4000W	36m³/h	77m	3″	2m	＜800V	≥5000W
	128	ET-6SSC36-98-380/550-5500-A/D	AC380/DC550V	480V-750V	5500W	36m³/h	98m	3″	2m	＜800V	≥7500W
	129	ET-6SSC36-135-380/550-7500-A/D	AC380/DC550V	480V-750V	7500W	36m³/h	135m	3″	2m	＜800V	≥8500W
	130	ET-6SSC36-175-380/550-9200-A/D	AC380/DC550V	480V-750V	9200W	36m³/h	175m	3″	2m	＜800V	≥10000W
	131	ET-6SSC36-210-380/550-1100-A/D	AC380/DC550V	480V-750V	11000W	36m³/h	210m	3″	2m	＜800V	≥15000W
	132	ET-6SSC36-270-380/550-15000-A/D	AC380/DC550V	480V-750V	15000W	36m³/h	270m	3″	2m	＜800V	≥20000W
