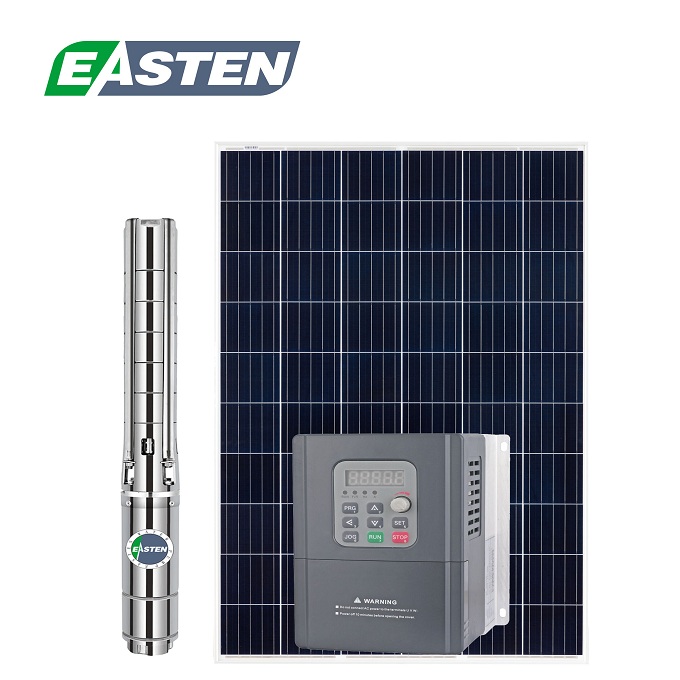

ET-6SSC-70-A/D Brushless Solar Pump

Short Description:

ET-6SSC-70-A/D Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden, outdoor use. Model : ET-6SSC-70-A/D series Brand : EASTEN


Product Detail

FAQ

Product Tags

ET-6SSC-70-A/D  Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden, outdoor use.

Model :  ET-6SSC-70-A/D  series

Brand : EASTEN



Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 15%-20%.

2.304 SS  rotator shaft .

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .



Technical Data

NAME  Model  Voltage  Best imput Voltage (DC) Power  Max. Flow  Max. Head  Outlet  Cable  Solar Panel
open volatage  Power
ET-6SSC-A/D Brushless Solar pump with SS impeller 133 ET-6SSC70-40-380/550-4000-A/D AC380/DC550V 480V-750V 4000W 70m³/h 40m 4″ 2m <800V ≥5000W
134 ET-6SSC70-60-380/550-5500-A/D AC380/DC550V 480V-750V 5500W 70m³/h 60m 4″ 2m <800V ≥7500W
135 ET-6SSC70-80-380/550-7500-A/D AC380/DC550V 480V-750V 7500W 70m³/h 80m 4″ 2m <800V ≥8500W
136 ET-6SSC70-100-380/550-9200-A/D AC380/DC550V 480V-750V 9200W 70m³/h 100m 4″ 2m <800V ≥10000W
137 ET-6SSC70-120-380/550-11000-A/D AC380/DC550V 480V-750V 11000W 70m³/h 120m 4″ 2m <800V ≥15000W
138 ET-6SSC70-160-380/550-15000-A/D AC380/DC550V 480V-750V 15000W 70m³/h 160m 4″ 2m <800V ≥20000W
139 ET-6SSC95-66-380/550-7500-A/D AC380/DC550V 480V-750V 7500W 95m³/h 66m 4″ 2m <800V ≥8500W
140 ET-6SSC95-88-380/550-11000-A/D AC380/DC550V 480V-750V 11000W 95m³/h 88m 4″ 2m <800V ≥15000W
141 ET-6SSC95-110-380/550-15000-A/D AC380/DC550V 480V-750V 15000W 95m³/h 110m 4″ 2m <800V ≥20000W
142 ET-6SSC130-60-380/550-15000-A/D AC380/DC550V 480V-750V 15000W 130m³/h 60m 4″ 2m <800V ≥20000W

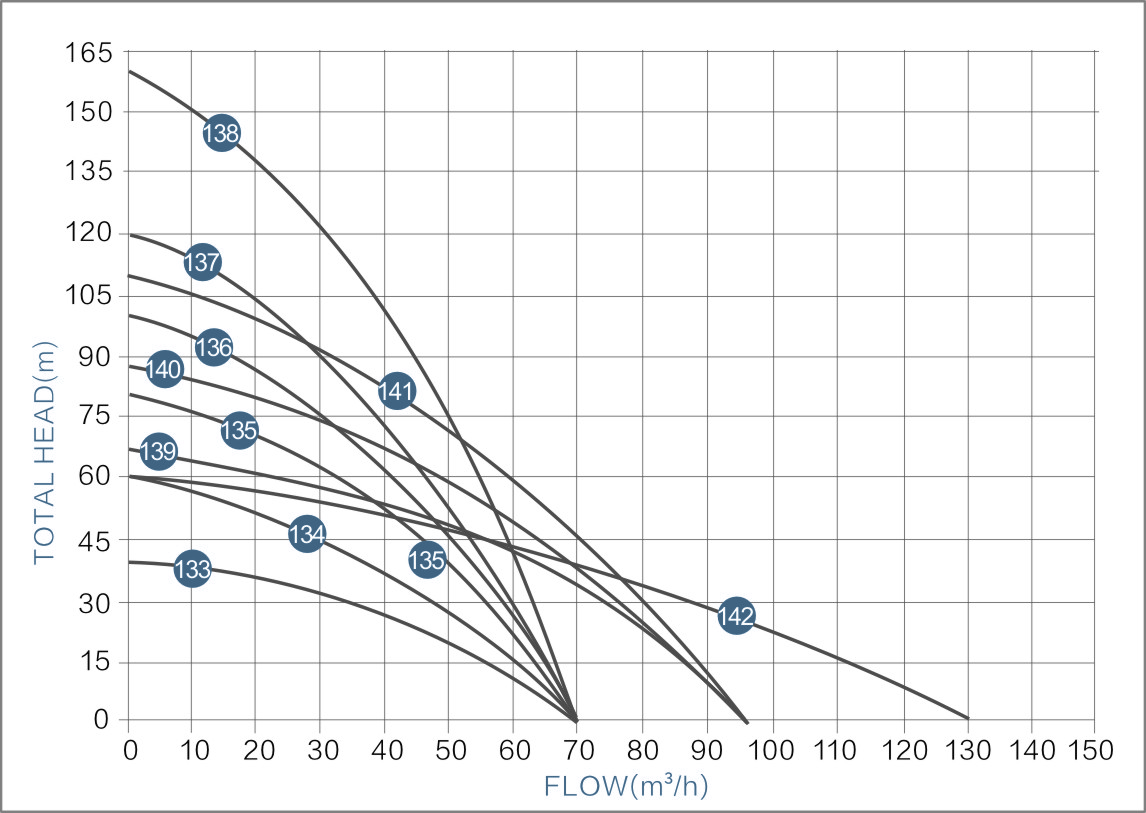

Performance Curves

133-142
